Accelerate your cellular recovery, cellular oxygenation, and overall cognitive wellness with the Oxyrevo Apex32 1.5 ATA Portable Hyperbaric Chamber. Masterfully engineered as a premier mild hyperbaric oxygen therapy (mHBOT) vessel, this professional-grade system balances premium clinical-level efficiency with a portable, user-friendly home architecture.
By raising internal atmospheric pressure to 1.5 ATA, the Apex32 dissolves pure oxygen directly into your blood plasma, cerebrospinal fluid, and tissues. This system maximizes cellular healing, systemic energy, and inflammation reduction without requiring permanent clinic installations.
Advanced 1.5 ATA Pressure & 5-in-1 Smart Control Center
- 1.5 ATA Deep Pressure Healing: Delivers a true 1.5 ATA (Atmospheres Absolute) operating pressure, equivalent to the pressure felt at roughly 17 feet below sea level. This elevated atmospheric compression significantly outperforms basic 1.3 ATA soft chambers by forcing up to 50% more oxygen into the body's fluid systems to speed up muscle repair, cognitive clarity, and collagen synthesis.

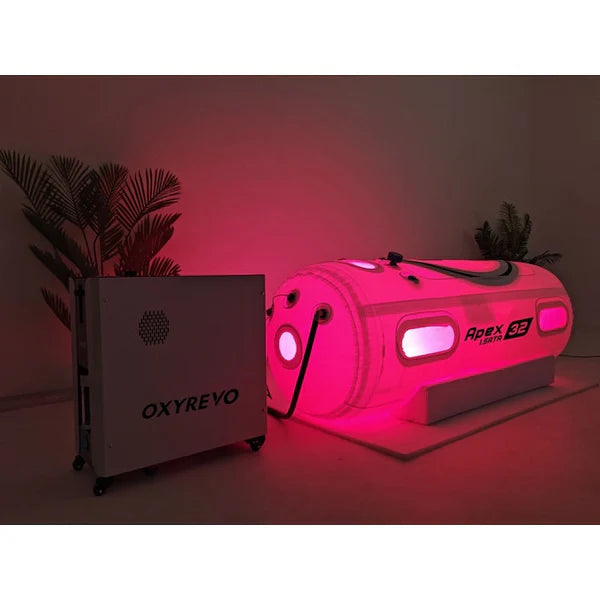

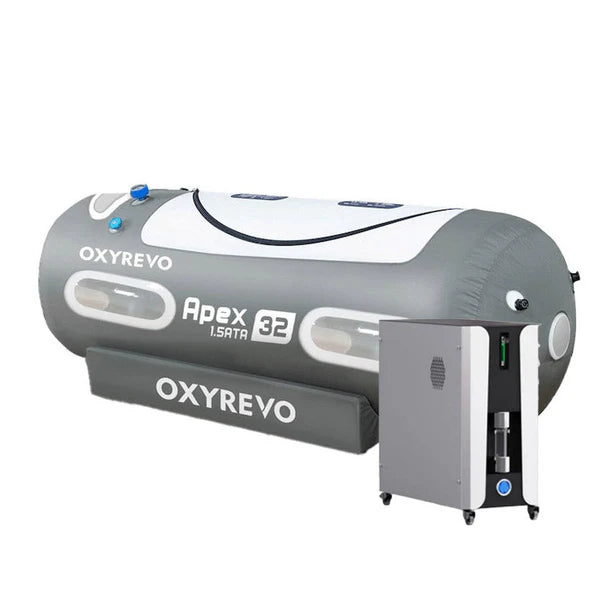

- Integrated 5-in-1 System Control Base: Combines your entire operating system into a single, high-efficiency system block. The centralized console intelligently integrates an Oil-Free Air Compressor, 10L/min Oxygen Concentrator (delivering 93%–96% pure oxygen), Air Dehumidifier, Water Cooling Chiller, and a 5-Micron Intake Filter Air Purification System. This eliminates messy, complex multi-hose routing and tangled exterior equipment.
- Adjustable Thermal Chiller System: Features a built-in water cooling chiller that continuously drops interior air temperatures by 4°F to 10°F below the surrounding room temperature. This prevents the chamber from feeling humid or stuffy during long therapy sessions, ensuring a cool, deeply relaxing treatment environment.
Heavy-Duty Double-Layer Vessel & Spacious Comfort

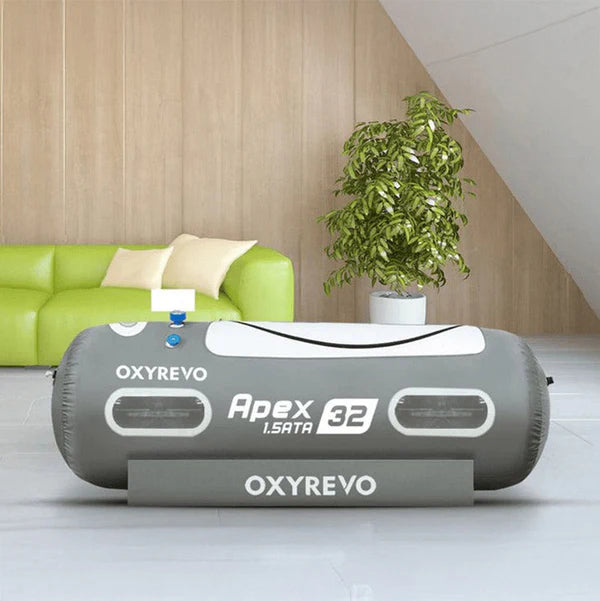

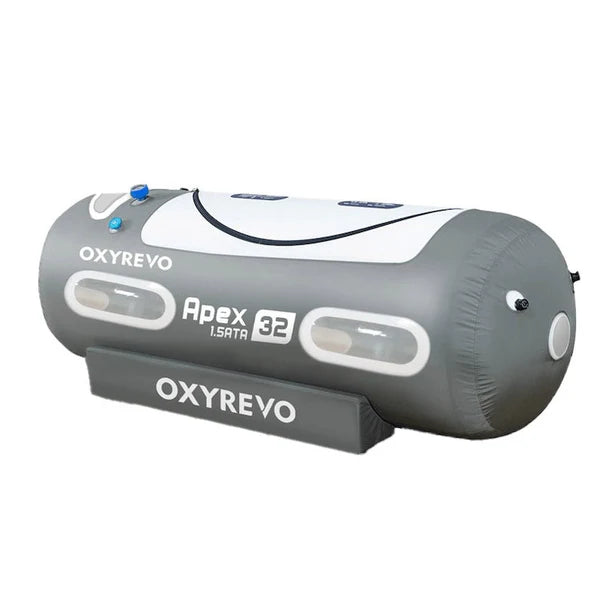

- 32-Inch Wide-Body Cabin: Built with a spacious 32-inch operating diameter and a 90-inch length, providing a roomy, non-claustrophobic cabin space. Users can comfortably sit up, lie flat, read a book, watch a tablet, or sleep without feeling restricted.
- Double-Layer TPU Composite Shielding: The chamber hull is constructed from heavy-duty, medical-grade thermoplastic polyurethane (TPU) fabric reinforced by a double-layer high-tensile material matrix. This advanced composite ensures complete zero-leak performance and structural safety under 1.5 ATA load pressures while remaining free of volatile organic chemical off-gassing.

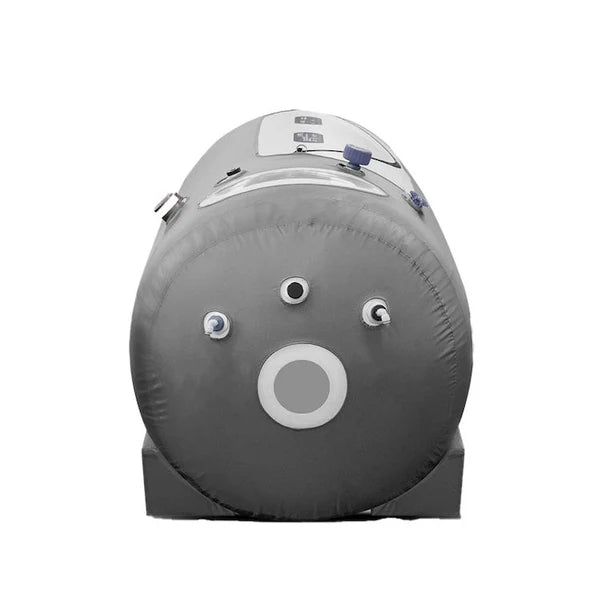

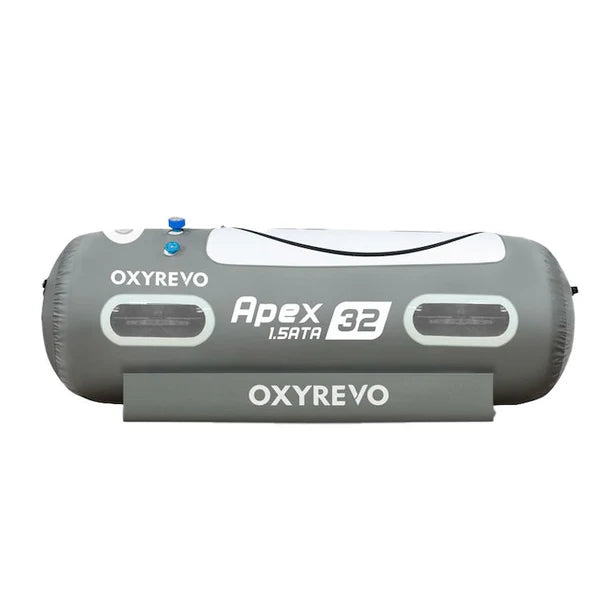

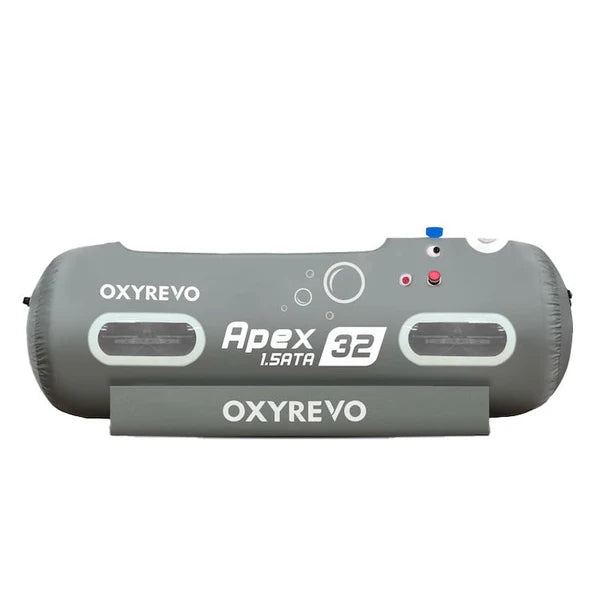

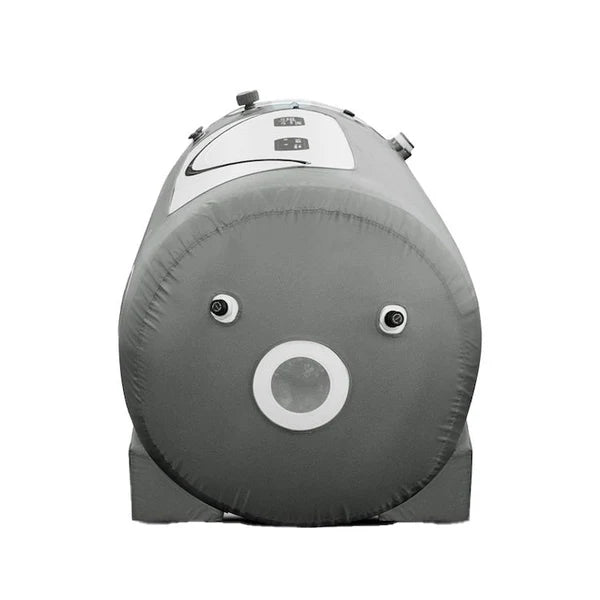

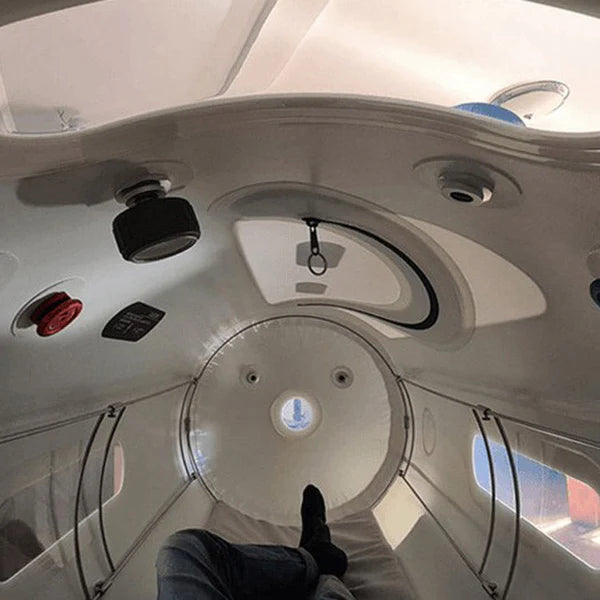

- Triple-Window Ambient Display Layout: Built with three large, pressure-sealed transparent observation windows. This layout lets in plenty of natural ambient room light to combat claustrophobia, while allowing caregivers to easily monitor users inside the chamber from any angle.
- Dual-Sided Pressure Gauge Arrays: Features identical precision mechanical pressure gauges mounted both inside and outside the cabin walls, allowing the user and external caregivers to independently monitor real-time pressure changes.
Pro-Grade Safety Integration & User Controls
- Dual Automatic Deflation Valve Arrays: Outfitted with dual high-accuracy automatic mechanical pressure-limiting relief valves. These valves automatically exhaust excess air if pressure goes above 1.5 ATA, keeping the chamber locked safely at its precise therapeutic level.
- One-Touch Emergency Manual Dump Valve: Designed for ultimate peace of mind, an oversized emergency manual dump valve allows users or caregivers to fully depressurize the chamber in less than 45 seconds for a rapid exit if needed.
- Internal and External Dual-Control Valves: Features matching, heavy-duty mechanical pressure control dials accessible from both inside and outside the cabin, giving the occupant total independence to comfortably manage inflation and deflation rates on their own.
- Reinforced Steel Outer Exoskeleton Frame: Comes standard with a heavy-duty outer steel stabilization cage frame that prevents the chamber from rolling, pitching, or shifting during entry or structural inflation cycles.
Technical Specifications Summary
| Feature / Metric | Specification |
| Brand / Model Line | Oxyrevo Hyperbarics — Apex Professional Series |
| Model Classification | Apex32 1.5 ATA Portable Layout |
| Maximum Operating Pressure | 1.5 ATA (7.35 PSI / 50 kPa Compression Load) |
| Chamber Vessel Dimensions | 32" Diameter × 90" Length (80cm × 225cm) |
| Material Construction | Heavy-Duty Double-Layer TPU Encapsulated Fabric Core |
| Oxygen Concentration Output | 93% to 96% Pure Oxygen via Integrated 10L/min Generator |
| Control Unit Infrastructure | 5-in-1 Compact Core (Compressor, Concentrator, Chiller, Dehumidifier, Filter) |
| Climate Cooling Capacity | Lowers Cabin Air by 4°F to 10°F below ambient room temp |
| Safety Relief Deflation Valves | 2 × Automatic 1.5 ATA Restricting Valves / 1 × Emergency Fast-Dump Valve |
| Access Port Infrastructure | Smooth Dual-Zipper Pressure Seal Interlocking System |
| Total Combined Power Draw | Max 950W Continuous Input Power |
| System Voltage Inclusions | 110V AC Standard USA Residential Plug Adapter |
| Vessel Weight Metric | Chamber Hull: ~33 lbs. / 5-in-1 All-in-One Console: ~165 lbs. |
| Manufacturer Warranty Protection | 2-Year Comprehensive Factory Parts & Labor Warranty |
Comprehensive System Packaging List
- 1 × Oxyrevo Apex32 Hyperbaric Chamber Cabin
- 1 × 5-in-1 Integrated Smart Air-Oxygen Control Console
- 1 × Steel Outer Stabilization Exoskeleton Frame & Mat
- 1 × Memory Foam Comfort Mattress with Antimicrobial Cover
- 2 × Premium Internal Headset Oxygen Delivery Cannulas & Face Masks
- Integrated Internal Air Hose and Cooling Water Pipe Array, & English Operation Manual
