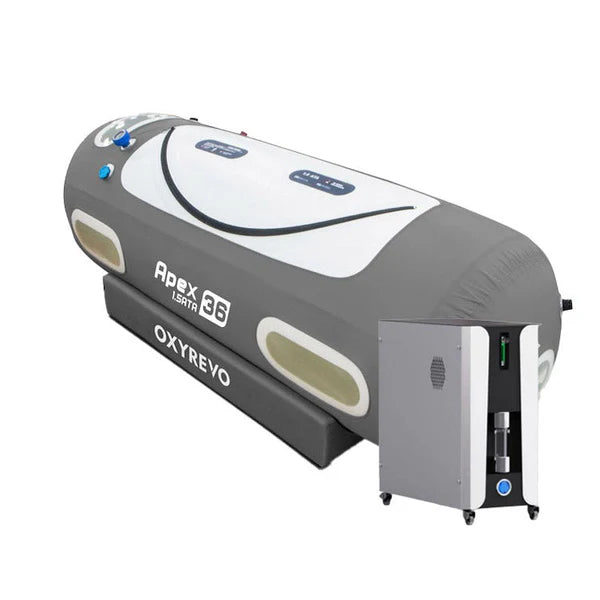

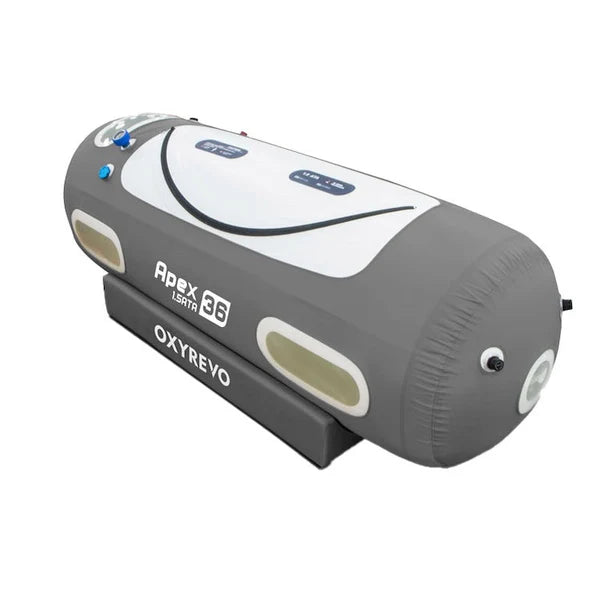

Maximize your home healing potential and clinical recovery protocols with the Oxyrevo Apex36 1.5 ATA Portable Hyperbaric Chamber. Engineered as the oversized flagship model in the portable mild hyperbaric oxygen therapy (mHBOT) series, this premium system balances professional-grade clinical output with an ultra-spacious cabin footprint.
By generating a deep 1.5 ATA therapeutic compression field, the Apex36 significantly enhances systemic oxygen absorption, saturating your blood plasma, cerebrospinal fluid, and deep muscle tissues. This advanced chamber is the ultimate solution for professional athletes, clinical environments, wellness centers, and high-performance home recovery setups looking for optimal space, luxury, and performance.
Expanded 36-Inch Wide-Body Comfort & Advanced 1.5 ATA Power
- Oversized 36-Inch Luxury Cabin: Built with a massive 36-inch wide-body operating diameter and a 90-inch length, this vessel provides a completely non-claustrophobic environment. Its expanded interior cabin space is ideal for larger individuals, elderly patients, or anyone who wants the freedom to sit fully upright, bend their knees, stretch out completely, or perform soft recovery exercises during therapy.
- 1.5 ATA Deep Pressure Healing: Delivers a true 1.5 ATA (Atmospheres Absolute) operating pressure, equivalent to the pressure felt at roughly 17 feet below sea level. This elevated atmospheric compression significantly outperforms basic 1.3 ATA soft chambers by forcing up to 50% more oxygen into the body's fluid systems to speed up muscle repair, cognitive clarity, and collagen synthesis.

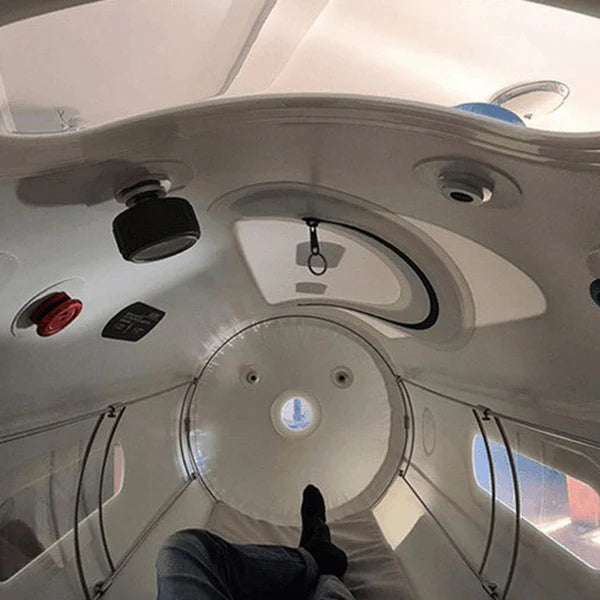

- Triple-Window Ambient Display Layout: Built with three large, pressure-sealed transparent observation windows. This layout lets in plenty of natural ambient room light to combat claustrophobia, while allowing caregivers to easily monitor users inside the chamber from any angle.
Integrated 5-in-1 Smart Control Base & Climate Chiller
- Centralized All-in-One Console Control: Eliminates messy, complex multi-hose routing and tangled exterior equipment. The Apex36 system block combines your entire operating system into a single, high-efficiency console that intelligently integrates an Oil-Free Air Compressor, 10L/min Oxygen Concentrator (delivering 93%–96% pure oxygen), Air Dehumidifier, Water Cooling Chiller, and a 5-Micron Intake Filter Air Purification System.
- Adjustable Thermal Chiller System: Features a built-in water cooling chiller that continuously drops interior air temperatures by 4°F to 10°F below the surrounding room temperature. This prevents the chamber from feeling humid or stuffy during long therapy sessions, ensuring a cool, deeply relaxing treatment environment.
Heavy-Duty Double-Layer Vessel & Pro-Grade Safety Integration
- Double-Layer TPU Composite Shielding: The chamber hull is constructed from heavy-duty, medical-grade thermoplastic polyurethane (TPU) fabric reinforced by a double-layer high-tensile material matrix. This advanced composite ensures complete zero-leak performance and structural safety under 1.5 ATA load pressures while remaining free of volatile organic chemical off-gassing.
- Dual-Sided Pressure Gauge Arrays: Features identical precision mechanical pressure gauges mounted both inside and outside the cabin walls, allowing the user and external caregivers to independently monitor real-time pressure changes.
- Dual Automatic Deflation Valve Arrays: Outfitted with dual high-accuracy automatic mechanical pressure-limiting relief valves. These valves automatically exhaust excess air if pressure goes above 1.5 ATA, keeping the chamber locked safely at its precise therapeutic level.
- One-Touch Emergency Manual Dump Valve: Designed for ultimate peace of mind, an oversized emergency manual dump valve allows users or caregivers to fully depressurize the chamber in less than 45 seconds for a rapid exit if needed.
Technical Specifications Summary
| Feature / Metric | Specification |
| Brand / Model Line | Oxyrevo Hyperbarics — Apex Professional Series |
| Model Classification | Apex36 1.5 ATA Portable Layout |
| Maximum Operating Pressure | 1.5 ATA (7.35 PSI / 50 kPa Compression Load) |
| Chamber Vessel Dimensions | 36" Diameter × 90" Length (90cm × 225cm) |
| Material Construction | Heavy-Duty Double-Layer TPU Encapsulated Fabric Core |
| Oxygen Concentration Output | 93% to 96% Pure Oxygen via Integrated 10L/min Generator |
| Control Unit Infrastructure | 5-in-1 Compact Core (Compressor, Concentrator, Chiller, Dehumidifier, Filter) |
| Climate Cooling Capacity | Lowers Cabin Air by 4°F to 10°F below ambient room temp |
| Safety Relief Deflation Valves | 2 × Automatic 1.5 ATA Restricting Valves / 1 × Emergency Fast-Dump Valve |
| Access Port Infrastructure | Smooth Dual-Zipper Pressure Seal Interlocking System |
| Total Combined Power Draw | Max 950W Continuous Input Power |
| System Voltage Inclusions | 110V AC Standard USA Residential Plug Adapter |
| Vessel Weight Metric | Chamber Hull: ~38 lbs. / 5-in-1 All-in-One Console: ~165 lbs. |
| Manufacturer Warranty Protection | 2-Year Comprehensive Factory Parts & Labor Warranty |
Comprehensive System Packaging List
- 1 × Oxyrevo Apex36 Hyperbaric Chamber Cabin
- 1 × 5-in-1 Integrated Smart Air-Oxygen Control Console
- 1 × Steel Outer Stabilization Exoskeleton Frame & Mat
- 1 × Memory Foam Comfort Mattress with Antimicrobial Cover
- 2 × Premium Internal Headset Oxygen Delivery Cannulas & Face Masks
- Integrated Internal Air Hose and Cooling Water Pipe Array, & English Operation Manual
